TARGET DRONES

TARGET DRONE
YB-280

High-Performance High-Speed Target Drone

ULTRA-LOW ALT 7.2G MANEUVER LONG RANGE

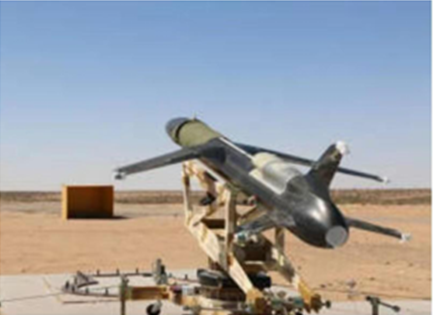

Target Drone YB-280

Product Overview

The Target Drone YB-280 is a high-performance high-speed target drone featuring ultra-low altitude flight, high maneuverability, and long endurance capabilities.

Full Altitude Range: Capable of ultra-low altitude flight (as low as 5m over sea) and high altitude (max 12000m), enabling multi-altitude layer operations across diverse scenarios.

Adjustable Stealth: RCS value can be adjusted from 0.01~5㎡ by installing Lunbo balls (radar reflectors), adapting to different detection difficulty requirements.

Extreme Environment: Wide temperature tolerance with storage range -40°C to +70°C and operating range -40°C to +60°C. Supports 200 waypoint programmed routes with horizontal track accuracy ≤50m.

Core Features

Full Altitude Flight
5m ultra-low to 12000m altitude
High Maneuverability
Max 7.2G overload
Long Range
200km control, 1hr endurance
Adjustable RCS
0.01~5㎡ with Lunbo balls
200 Waypoints
Programmed route capability
Extreme Temp Range
-40°C to +70°C storage

Specifications

FUSELAGE LENGTH
4.2m
WINGSPAN
2.2m
MAX TAKEOFF WEIGHT
200kg
PAYLOAD
40kg
MAX SPEED
1008km/h
MAX ALTITUDE
12000m (altitude)
MIN ALTITUDE
<5m (over sea)
MAX MANEUVER OVERLOAD
7.2G
ENDURANCE
1 hour
CONTROL RADIUS
200km
WIND RESISTANCE
Level 5
OPERATING TEMP
-40°C ~ +60°C
STORAGE TEMP
-40°C ~ +70°C
RCS (X-BAND)
0.01~5㎡ (with Lunbo balls)
PROGRAMMED ROUTE
Up to 200 waypoints
HORIZONTAL TRACK ACCURACY
≤50m
LAUNCH METHOD
Rocket-assisted launch
RECOVERY
Parachute + Airbag
CONTROL MODE
Remote / Programmed / Fully Autonomous

Interested in Target Drone YB-280?

Contact us for specifications and procurement details.
