TARGET DRONES

TARGET DRONE
LJ-1

Medium Range Attack UAV

MEDIUM RANGE ATTACK STEALTH

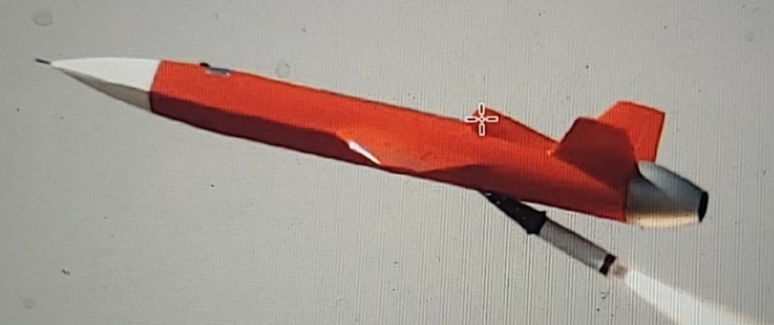

Target Drone LJ-1

Product Overview

The Target Drone LJ-1 is a Medium Range Attack UAV designed for strategic strike missions.

Aerodynamic Design: Features a swept-wing monoplane and V-tail configuration with rear-mounted engine. The detachable wing design facilitates easy transport and storage.

Power System: Equipped with a turbojet engine with optimized thrust-to-weight ratio, achieving low-altitude, subsonic flight with large payload capacity.

Construction: Built with advanced aviation manufacturing technology, featuring lightweight and modular design. Offers low cost, high cost-performance, good stealth characteristics, and wide-area mobile launch capabilities.

Guidance System: Integrated INS+GPS+BD (Beidou) combined with optical guidance. Capable of beyond-visual-range (BVR) precise strikes against fixed targets on water and land.

Core Features

Multi-Mode Guidance
INS+GPS+BD + Optical guidance
BVR Strike
Beyond-visual-range precision strikes
Flexible Deployment
Rocket-assisted launch
Recovery System
Parachute + airbag recovery
Detachable Wings
Easy transport & storage
High Cost Performance
Lightweight, modular with stealth

Specifications

FUSELAGE LENGTH
3.55m (3550mm)
WINGSPAN
1.75m (1750mm)
MAX TAKEOFF WEIGHT
≤180kg
FUEL CAPACITY
90L
ENGINE THRUST
70kgf
ENGINE WEIGHT
≤10kg
GENERATOR POWER
≤1000W
MAX ENDURANCE
60min
MAX RANGE
750km
MAX CRUISE SPEED
≈734km/h (0.6Ma)
CRUISE ALTITUDE
Land: 50-7600m, Sea: 50-7600m
PAYLOAD
40kg
GUIDANCE
INS+GPS+BD + Optical Guidance
LAUNCH METHOD
Rocket-Assisted
RECOVERY
Parachute Recovery + Airbag Cushion
CONTROL RADIUS
100km (Optional 150km)
