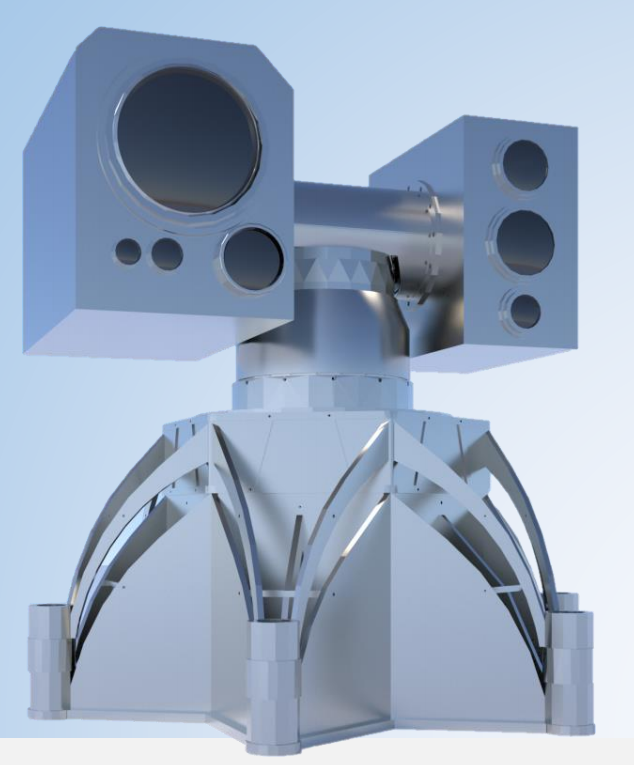

Directed Energy Laser-LG Series
Long-Range High-Energy Laser Defense System
Product Overview
Based on the directed energy strike technology system, through precise focusing of high-energy laser beams, it achieves instantaneous meltdown of low-altitude slow-moving targets such as drone swarms and offensive model aircraft within the 3-8 km airspace. The breakthroughs in technical advantages are as follows: ■ Physical damage denial capability: An innovative laser core melting hard kill mechanism, which can penetrate 5mm thick steel plates within 3 seconds, achieving forced disablement effect. ■ Dual defense effectiveness matrix: Establishes a dual-effect defense system of “target damage-information fusing”, effectively intercepting drone swarms and blocking high-definition data recovery. ■ Electromagnetic environment adaptability: Optically resistant to full-band interference; in complex electromagnetic countermeasure scenarios, it completes the reconnaissance-measurement-damage workflow within 10 seconds.
Key Capabilities
🎯 Physical Damage Denial
Innovative laser core melting hard kill mechanism, which can penetrate 5mm thick steel plates within 3 seconds, achieving forced disablement effect.
🛡️ Dual Defense Matrix
Establishes a dual-effect defense system of “target damage-information fusing”, effectively intercepting drone swarms and blocking high-definition data recovery.
⚡ EM Environment Adaptability
Optically resistant to full-band interference; in complex electromagnetic countermeasure scenarios, it completes the reconnaissance-measurement-damage workflow within 10 seconds.
Technical Specifications
| Specification | LG-L7 | LG-L19 |
|---|---|---|
| Laser Power | 21 kW | 57 kW |
| Strike Distance | 2.2~3.1 km | 3.2~4.6 km |
| Tracking & Aiming Mode | Visualized tracking and aiming | Visualized tracking and aiming |
| Infrared TV | Optional | None |
| Ranging | Point Ranging | Point Ranging |
| Horizontal Strike Angle | N×360° | N×360° |
| Weight (Excluding vehicle) | 10,000 kg | 12,000 kg |
| Power Supply Mode | Battery / Mains Electricity | Battery / Mains Electricity |
| Duration of Single Continuous Laser Emission | 1~300s | 1~300s |
| Tracking & Aiming Accuracy | 3″ | 3″ |
| Laser Spot Quality | 1.2 mrad | 1.2 mrad |
