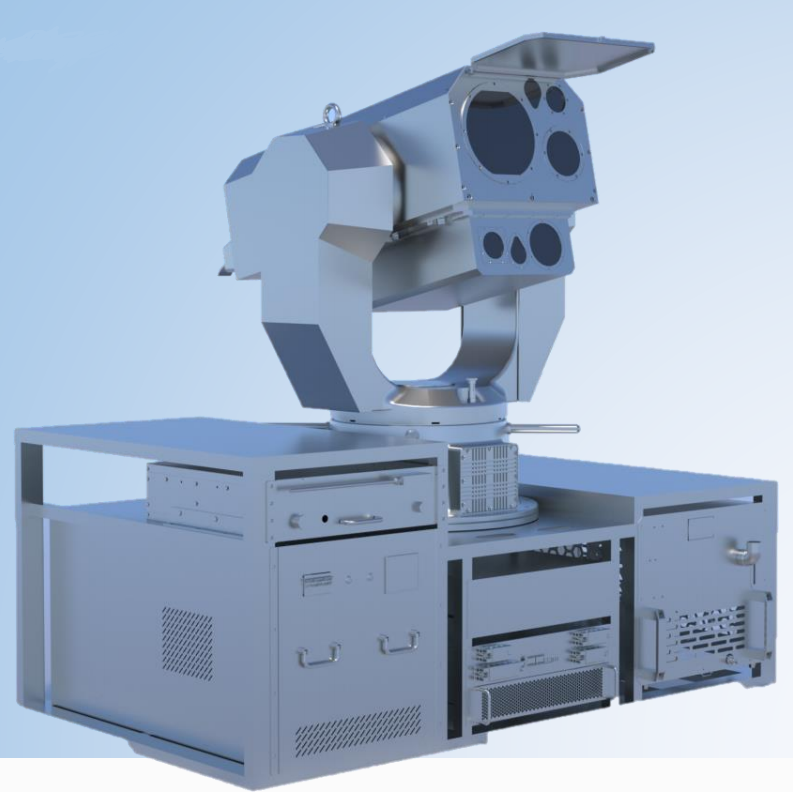

Directed Energy Laser-JY Series
High-Energy Laser Defense System
Product Overview
Adopting directed energy strike technology, it uses precisely focused high-energy laser beams to deliver instant meltdown to low-altitude slow-moving targets such as drone swarms and attack-type model aircraft within 1-2km airspace, pioneering the following capabilities: ◆ Physical annihilation and denial: Laser core-melting hard kill – penetrating steel plates in 3 seconds to physically disable the target’s operational capability. ◆ Dual-effect defense matrix: Capable of both neutralizing suicide drone attacks and preventing drones from returning to base. ◆ Battlefield intelligence interception: Ensuring 100% interception rate of raw data, eliminating the retrieval of sensitive information. ◆ Resistance to electromagnetic interference: Unaffected by battlefield electronic countermeasures, completing strikes within 10 seconds in complex electromagnetic environments.
Key Capabilities
🎯 Physical Annihilation
Laser core-melting hard kill – penetrating steel plates in 3 seconds to physically disable the target’s operational capability.
🛡️ Dual-Effect Defense
Capable of both neutralizing suicide drone attacks and preventing drones from returning to base.
🔒 Intelligence Interception
Ensuring 100% interception rate of raw data, eliminating the retrieval of sensitive information.
⚡ EM Interference Resistance
Unaffected by battlefield electronic countermeasures, completing strikes within 10 seconds in complex electromagnetic environments.
Technical Specifications
| Specification | JY J1-3K | JY J1-8K | JY J1-10K |
|---|---|---|---|
| Laser Power | 3 kW | 8 kW | 10 kW |
| Strike Distance | 1~1.5 km | 1.3~1.8 km | 1.4~2 km |
| Tracking & Aiming Mode | Visualized tracking and aiming | Visualized tracking and aiming | Visualized tracking and aiming |
| Infrared TV | None | Optional | Optional |
| Ranging | Point Ranging (Optional LiDAR) | Point Ranging | Point Ranging |
| Horizontal Strike Angle | -170° ~ 170° | -170° ~ 170° | -170° ~ 170° |
| Weight (Excluding vehicle) | 750 kg | 1200 kg | 1500 kg |
| Power Supply Mode | Battery / Mains Electricity | Battery / Mains Electricity | Battery / Mains Electricity |
| Duration of Single Continuous Laser Emission | 1~300s | 1~180s | 1~180s |
| Tracking & Aiming Accuracy | 10° | 10° | 10° |
| Laser Spot Quality | 1.2 mrad | 1.5 mrad | 1.5 mrad |
